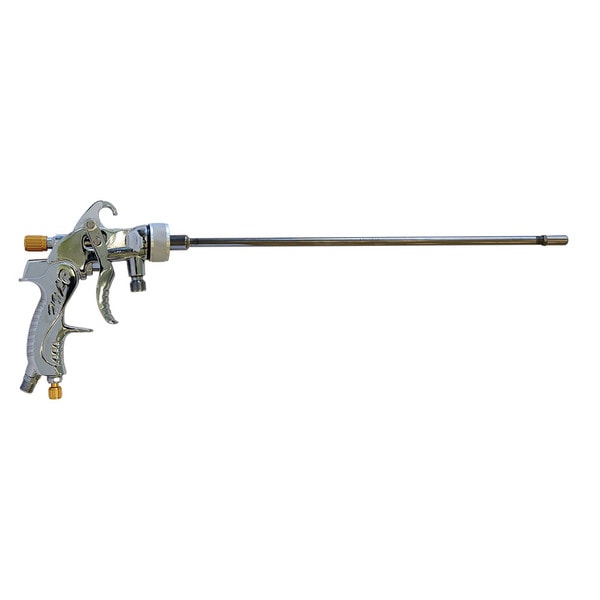

LXS-X18 Manual Spray Gun W/ 18" Extension & 360 Degree Aircap

(0)No Reviews yet
$285.00
SKU: LXS-X18
The LXS-X18 Spray Gun with 6 Inch Extension:

The LXS-X18 is installed with a 18 inch extension and 360 degree aircap.  You will need 1/2 inch clearance to enter the item you are spraying.  The 360 degree aircap will spray the sides as you push in or pull out of the cavity.  For different spray patterns the aircap can be changed to the following:

AXIB (spherical), AXIF (straight fan), AXIF-45 (45 degree fan), AXIF-90 (90 degree fan), AXR (straight round), AXIR-15 (15 degree spray backwards)

Must be pressure fed from a pressure tank.  See PT-25 pressure tank or PT-64 pressure cup if needed.

Specs:
Part Number:       LXS-X18
Type:                   Extension Spray Gun
Head Size:           .055 or 1.4mm
Air Volume:          4-8 CFM
Air Pressure:        45 PSI or more
Fluid Pressure:     Up to 30-40 PSI
Fluid Inlet:           3/8" NPS
Air Inlet:              ¼" NPT
Spray Pattern:      Determined by aircap used
Manual Spray Gun W/Extension
