EBF-8-T1 Bench Booth w/ Fan and Motor

(0)No Reviews yet

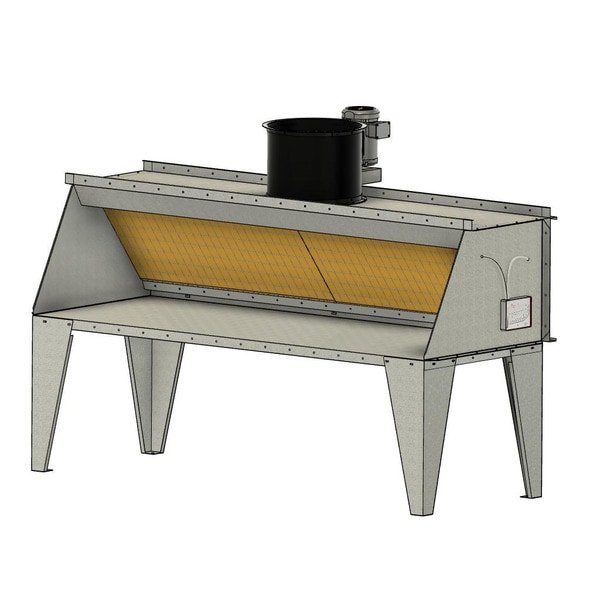

8' Bench Spray Booth

Working Dimensions: 8'4"W x 2'6D x 2'H
Over All Dimensions: 8'4"W x 3'2"D x 5'8"H

The Booth Includes:
18 inch Fan with Sparkless Fan Blade & 3,365 CFM
1/2 H.P. TEFC Motor (1 Phase, 115/230 Volt)
Belt Guard
Draft Gauge
Set of Paint Filters
Full set of assembly instructions and hardware
Conforms to OSHA, NFPA and EPA Regulations
Booth must be assembled and hardwired (switch to be supplied by electrician)

Optional Items:
AG-12                                Case of 50 Filters
BE-54-18                           Duct Flange (Recommended for all booths)
A-18                                   2 Foot Section of Duct
AD-18                                2 Foot Section of Duct with Clean Out Door
B-1/2-18                            90 Degree Elbow
EF-18                                 Flat Roof Flange (Roof)
WC-18                                Weather Canopy / Damper (Roof)
S-18                                   Wall Shutter (Side Wall)
