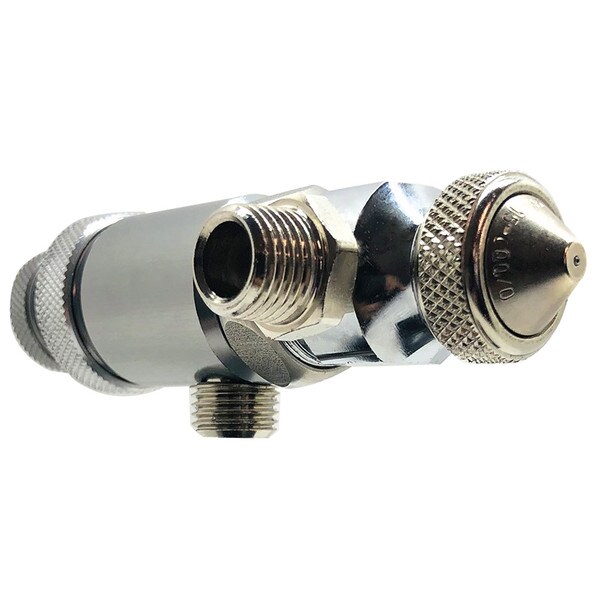

A-JUR-1 Auto Spray Gun w/ Round Spray & .028 Tip
A-JUR-1 Auto Spray Gun:
The A-JUR-1 delivers a round spray pattern between 1/8" and 2".
Has a narrower cylynder for tighter spaces.
Required 45-60 PSI activation air.
Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
Suggested Mounting Assembly UM-96
Recommended Mounting Assembly: UM-96
Specs:
Part Number: A-JUR-1
Type: Automatic Spray Gun
Head Size: .028
Air Volume: 1.0 CFM
Air Pressure: 45-60 PSI
Air Inlet: 1/4" NPT (M)
Fluid Inlet: 1/4" NPT (M)
Spray Pattern: 1/8" to 2"
Weight: .7 Lbs
Finish: Chrome Plated
The A-JUR-1 delivers a round spray pattern between 1/8" and 2".
Has a narrower cylynder for tighter spaces.
Required 45-60 PSI activation air.
Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
Suggested Mounting Assembly UM-96
Recommended Mounting Assembly: UM-96
Specs:
Part Number: A-JUR-1
Type: Automatic Spray Gun
Head Size: .028
Air Volume: 1.0 CFM
Air Pressure: 45-60 PSI
Air Inlet: 1/4" NPT (M)
Fluid Inlet: 1/4" NPT (M)
Spray Pattern: 1/8" to 2"
Weight: .7 Lbs
Finish: Chrome Plated
Auto Spray Gun w/ Round Spray & .028 Tip
