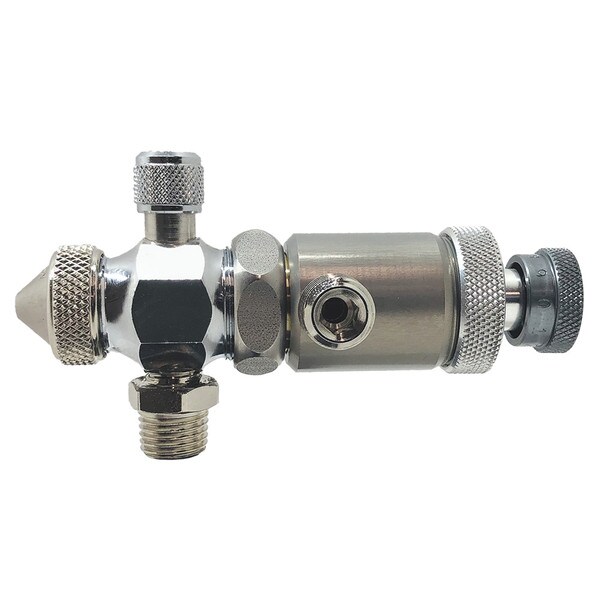

A-JUNVR-2 Auto Spray Gun:
The A-JUNV series spray gun has one fluid and one air port.  Atomizing air has an adjustment needle valve for fine tuning atomization.  If you want a separate atomizing port look at the A-JUAR series.

• The A-JUNVR-2 delivers a round spray pattern between 1/8" and 2".
• The .040 fluid tip is for thinner fluids
• Has a narrower cylinder for tighter spaces.
• Required 45-60 PSI activation air.
• Atomizing dial control included.
• Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials.
• Heads size can be changed be switching the AU- tip and AR-15- aircap to matching size.

Recommended Mounting Assembly: UM-96

Part Number:         A-JUNVR-2
Type:                    Automatic Spray Gun
Head Size:            .040
Air Volume:          1.0 CFM
Air Pressure:        45-60 PSI
Air Inlet:               1/4" NPT (M)
Fluid Inlet:           1/4" NPT  (M)
Spray Pattern:      1/8" to 2"
Weight:               .7 Lbs
Auto Spray Gun w/ Atomizing Air Control, Round Spr
