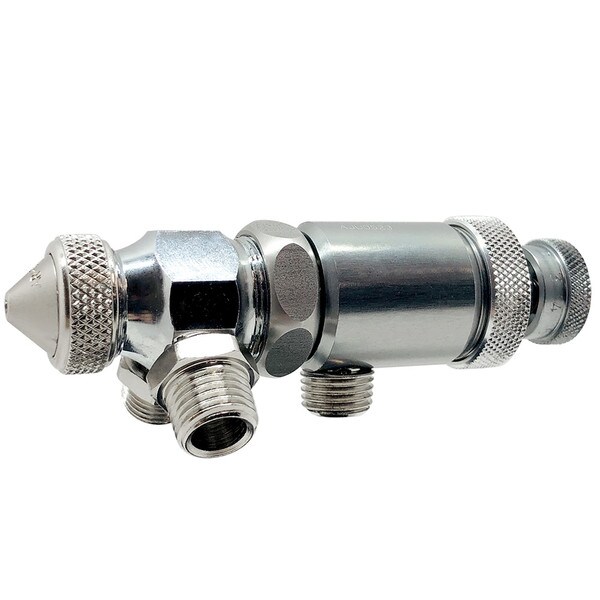

A-JUAR-3 Auto Spray Gun w/ Separate Atomizing Air, Round Sp

(0)No Reviews yet
$165.00
SKU: A-JUAR-3
A-JUAR-3 Auto Spray Gun:
The A-JUAR series has an added atomizing air port so activation air and atomization air are separate.  This allows for finer control of your fluid atomization.

• The A-JUAR-3 delivers a round spray pattern between 1/8" and 2".
• The .040 fluid tip is for thinner-medium fluids
• Has a narrower cylinder for tighter spaces.
• Required 45-60 PSI activation air.
• Separate atomization line port
• Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
• Heads size can be changed be switching the AU- tip and AR-15- aircap to matching size.

Suggested Mounting Assembly: UM-96

Specs:
Part Number:       A-JUAR-3
Type:                  Automatic Spray Gun
Head Size:           .046
Air Volume:         1.0 CFM
Air Pressure:       45-60 PSI
Air Inlet:             1/4" NPT (M)
Fluid Inlet:          1/4" NPT  (M)
Spray Pattern:     1/8" to 2"
Weight:               .7 Lbs
