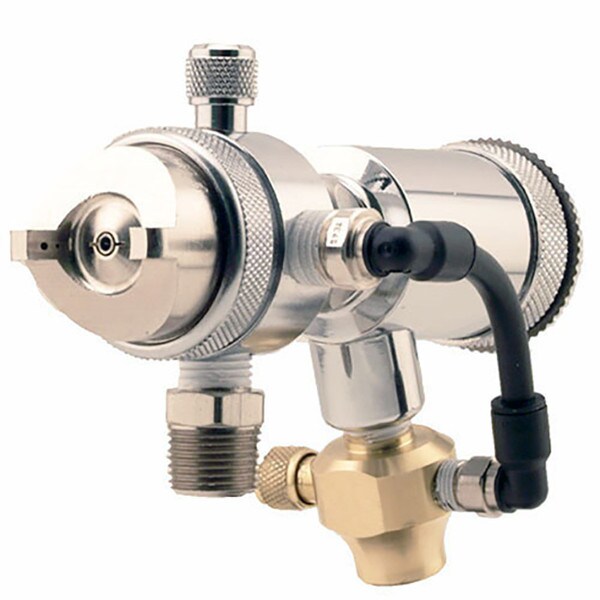

The A-C4F-0-9 Auto Spray Gun:

• The C4F model has three independent controls for fluid, atomizing and fan pattern but only one air line to save space and setup time.
• Adjustable to achieve round and flat spray patterns.
• Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
• Suggested Mounting Assembly UM-20

Specs:

Part Number:      A-C4F-0-9

Type:                    Automatic Spray Gun

Head Size:           .055

Air Volume:         7-9 CFM

Air Pressure:       45-60 PSI

Air Inlet:               ¼” NPT

Fluid Inlet:          3/8" NPT

Spray Pattern:    1” to 12”

Weight:                2 Lbs

Finish:                  Chrome Plated
