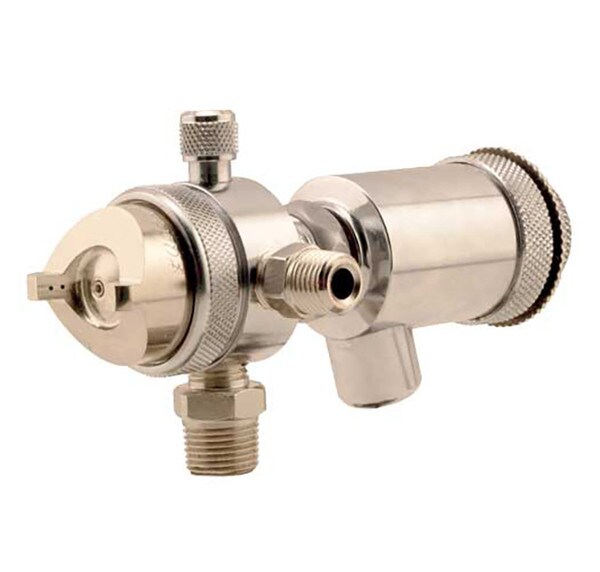

A-C3F-4-10 Auto Spray Gun w/ Adjustable Fan Spray, Separate Atomizing Port & .093 tip
The A-C2F-4-10 Auto Spray Gun:
Includes stainless steel fluid tip and needle.
The C3F series has an adjustable fluid and fan controls. Atomizing and activation air are separate.as well.
Suggested Mounting Assembly UM-20
Specs:
Part Number: A-C3F-4-10
Type: Auto. Spray Gun with Carbide tip and needle
Head Size: .093
Air Volume: 10 CFM
Air Pressure: 45-60 PSI
Air Inlet: (2) 1/4” NPT (Atomizing & Activation)
Fluid Inlet: 3/8 NPS
Spray Pattern: 1” to 10”
Weight: 2 Lbs
Finish: Chrome Plated
Includes stainless steel fluid tip and needle.
The C3F series has an adjustable fluid and fan controls. Atomizing and activation air are separate.as well.
Suggested Mounting Assembly UM-20
Specs:
Part Number: A-C3F-4-10
Type: Auto. Spray Gun with Carbide tip and needle
Head Size: .093
Air Volume: 10 CFM
Air Pressure: 45-60 PSI
Air Inlet: (2) 1/4” NPT (Atomizing & Activation)
Fluid Inlet: 3/8 NPS
Spray Pattern: 1” to 10”
Weight: 2 Lbs
Finish: Chrome Plated
Auto Spray Gun w/ Adjustable Fan Spray, Separate Atomizing Port & .093 tip
