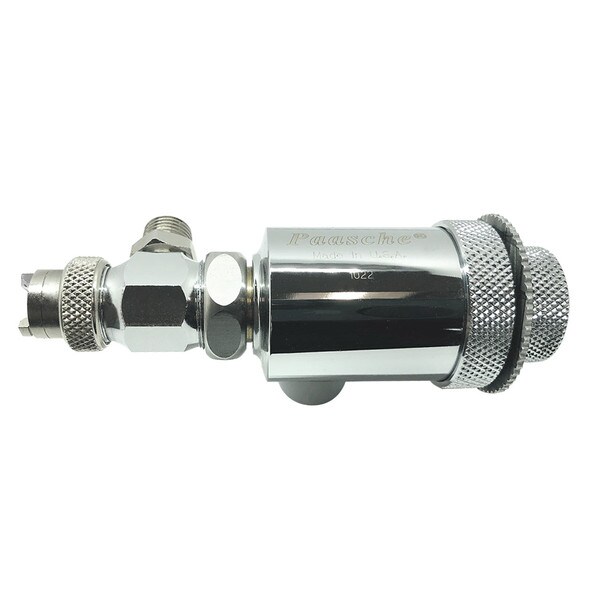

A-AUF-1 Auto Spray Gun w/ Fan Spray & .028 Inch Tip

(0)No Reviews yet
A-AUF-1 Auto Spray Gun:
       The A-AU series spray gun has one fluid and one air port.  Activation and atomizing will share the same air line.  Minimum activation pressure is  45 PSI.  If you want control over atomizing below that pressure look at A-AUAF and A-AUDF models.

• Delivers a fan spray pattern between 2" and 5".
• The .028 fluid tip is for thinner fluids
• Required 45-60 PSI activation air.
• Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
• Heads size can be changed be switching the AU- tip and ANFA- aircap to matching size.

Recommended Mounting Assembly: UM-20

Part Number:        A-AUF-1
Type:                   Automatic Spray Gun
Head Size:           .028
Air Volume:          1.5 CFM
Air Pressure:        45-60 PSI
Air Inlet:              1/4" NPT (M)
Fluid Inlet:           1/4" NPT  (M)
Spray Pattern:      2" to 5"
Weight:                1.15 Lbs
Finish:                  Chrome Plated
Auto Spray Gun w/ Fan Spray & .028 Inch Tip
