A-AUDF-000

(0) No Reviews yet
$165.00
SKU: A-AUDF-000

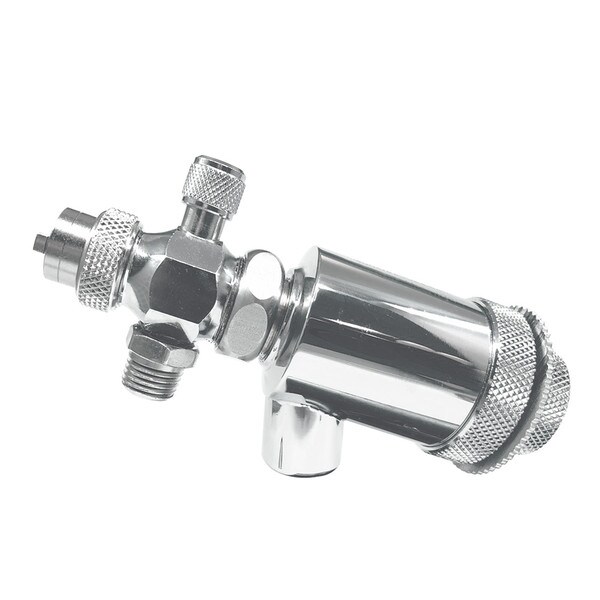

A-AUDF-000 Auto Spray Gun:
The A-AUD series spray gun has one fluid and one air port.  Atomizing air has an adjustment needle valve for fine tuning atomization.  If you want a separate atomizing port look at the A-AUD series.

• Delivers a fan spray pattern between 2" and 5" depending on distance from surface.
• The .014 fluid tip is for thinner fluids
• Required 45-60 PSI activation air.
• Atomizing dial control included.
• Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials.
• Heads size can be changed be switching the AU- tip and ANFA- aircap to matching size.

Recommended Mounting Assembly: UM-20

Specs:
Part Number:         A-AUDF-000
Type:                    Automatic Spray Gun
Head Size:            .014
Air Volume:          1.0 CFM
Air Pressure:         45-60 PSI
Air Inlet:               1/4" NPT (M)
Fluid Inlet:            1/4" NPT  (M)
Spray Pattern:       1/8" to 2"
Weight:                 1.15 Lbs
Finish:                  Chrome Plated
Auto Spray Gun w/ Atomizing Air Control, Fan Spray
