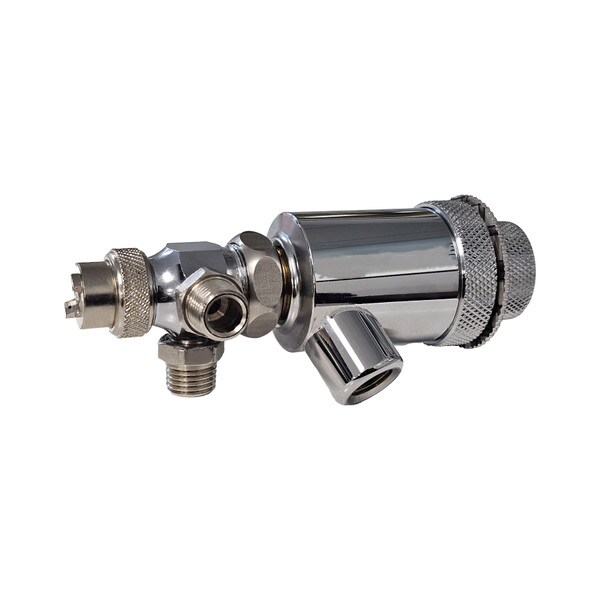

A-AUAF-000 Automatic spray gun w/ separate atomizing air port & fan pattern (.014 tip)
A-AUAF-000 Auto Spray Gun:
The A-AUAF-000 delivers a fan spray pattern between 2" and 6". Activation air and atomizing air have their own ports so can be controlled individually. Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
The A-AUAF-000 delivers a fan spray pattern between 2" and 6". Activation air and atomizing air have their own ports so can be controlled individually. Both the fluid tip and needle are stainless steel allowing the use of water or solvent based materials
Suggested Mounting Assembly UM-20
Specs:
Part Number: A-AUAF-000
Type: Automatic Spray Gun
Head Size: .014
Air Volume: 2 CFM
Air Pressure: 45-60 PSI
Air Inlet: 1/4" NPT
Fluid Inlet: 1/4" NPT
Spray Pattern: 2" to 6"
Weight: 1.45 Lbs
Finish: Chrome Plated
Specs:
Part Number: A-AUAF-000
Type: Automatic Spray Gun
Head Size: .014
Air Volume: 2 CFM
Air Pressure: 45-60 PSI
Air Inlet: 1/4" NPT
Fluid Inlet: 1/4" NPT
Spray Pattern: 2" to 6"
Weight: 1.45 Lbs
Finish: Chrome Plated
Auto Spray Gun w/ Separate Atomizing Air Port & Fan Spray (.014 Head)
